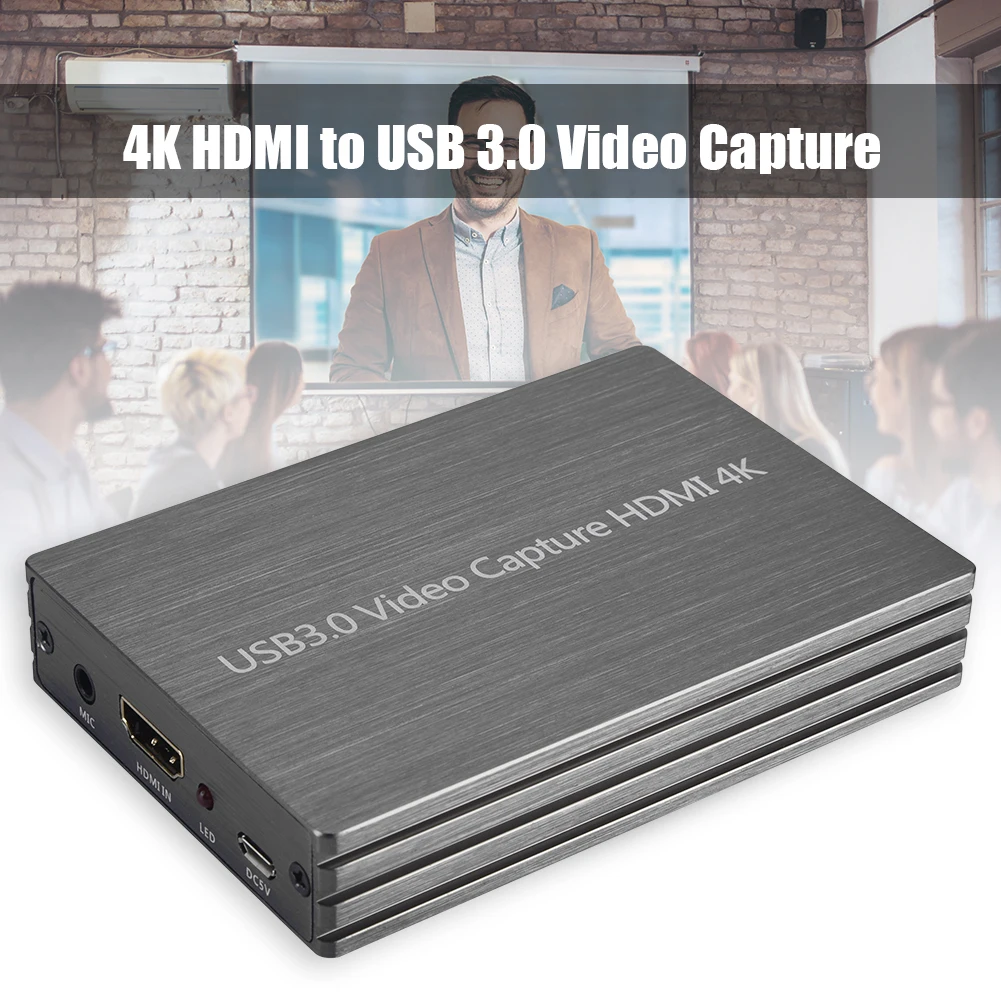

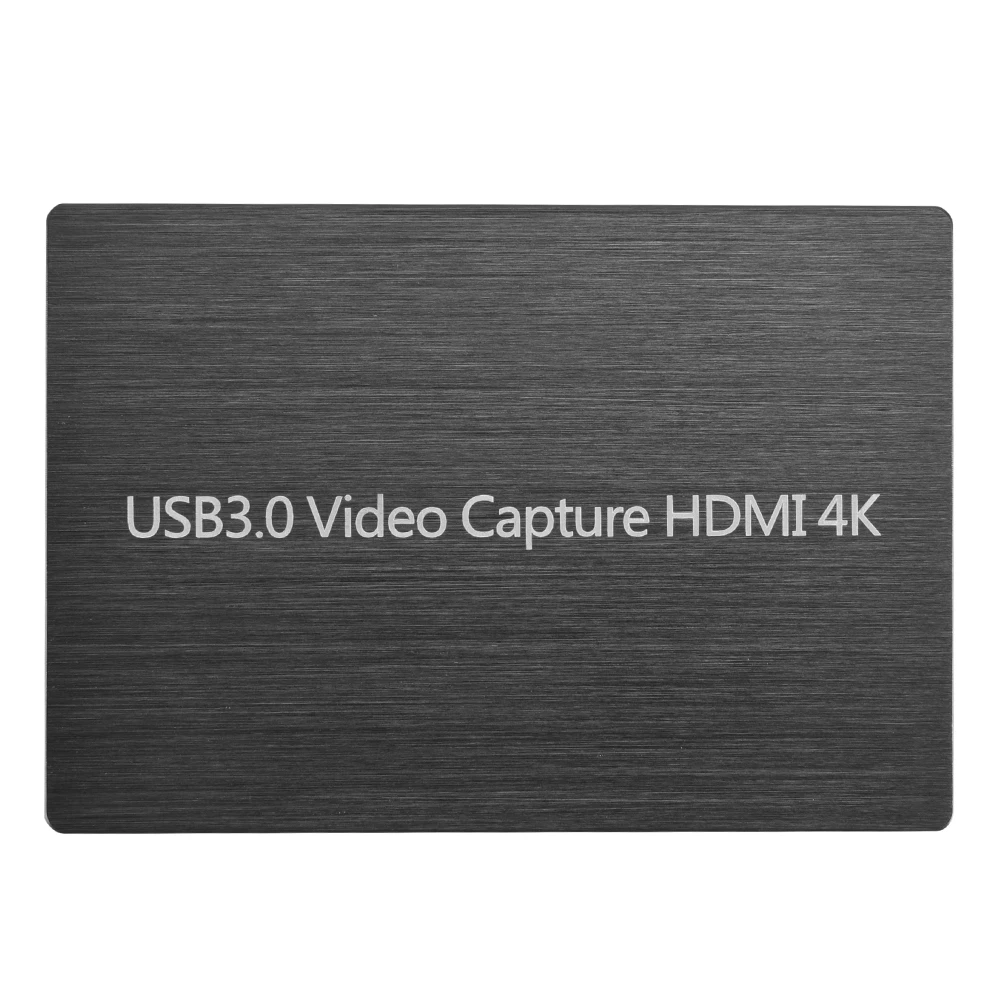

USB3.0 video capture HDMI with loop-out 4k supports microphone external power supply


Price:
$72.49

Free Shipping


Overview and Specifications:

Product Attribute
Compatibility : All Compatible
Model Number : YY-S300
Bundle : 1
State of Assembly : Ready-to-Go
Camera Equipped : No
Origin : CN(Origin)

4K 2K USB3.0 HDMI-compatible to HDMI-compatible Game capture Card Grabber 1080P HD Video Recording capture Recorder for OBS Game Live Broadcast Box
Description:
HDMI to USB3.0 video capture dongle, easy to carry, excellent performance, outstanding compatibility, simple installation and many other functions. It can capture an HDMI-compatible 4K30Hz input; compatible with Windows, Linux, Mac OS X and USB 3.0 interfaces, compatible with many USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0 interface ; HDMI-compatible video capture complies with UVC and UAC standards, no need to install drivers and settings, true PnP, easy to use.

Feature:
1. No need to install the driver, it is real PnP
2. Compatible with for Windows, Linux, OS X operating systems
3. USB3.0, speed 300-350MB/s, compatible with USB 2.0
4. The process of video and audio is completed by the dongle, which will not occupy the CPU
5. It can capture a single channel HD HDMI-compatible video signal
6. It can automatically detect the input video format and adjust the output size and frame rate automatically.
7. Input and output video signals up to 1080p / 60 Hz
8. It is compatible with UVC video capture and YUV 422 video output

Specifications:
Host interface: USB3.0, 300-350MB/s, USB2.0, 40MB/s
Input interface: HDMI-compatible interface
DMI input format: 480i, 480p, 576i, 576p, 720p50, 720p60, 1080i50, 1080i60, 1080P24 / 25/30 / 60
Supported resolution:640×480/720×480/720×576/768×576/800×600/1024×768/1280×720/1280×800/1280×960/1280×1024 / 1368×768/1440/1600×1200/1680×1050/1920×1080/1920×1200/640×360/856×480/960×540/1024×576
Frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps
UVC and UAC audio and video capture standards
Support for OS Windows 7 Windows Server 2008 R2 Linux (kernel version 2.6.38 and higher) OS X (10.8 and higher)
Software compatibility: Windows Media Encoder (Windows) / Adobe Flash / Media Live Encoder (Windows, OS X) / Real Producer Plus (Windows) / VLC (Windows, OS X, Linux) / QuickTime Broadcaster (OS X) / QuickTime Player (OS X) / Wirecast (Windows, OS X) / Potplayer (Windows), etc.
Interface compatibility: DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Power consumption: ≤ 2.5W
Working temperature: 0 ℃ ~ 50 ℃
Storage temperature: -20 ℃ ~ 70 ℃
Storage humidity: 5% -90%
Product size: 102*70*19mm/4.02*2.76*0.75in

Notes:
1. Please allow 1-3mm differs due to manual measurement.
2. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

1 X Host
1 X USB Power Cable
1 X HDMI-compatible Cable
1 X USB 3.0 Cable
1 X Type-C Cable
1 X Manual
